| Series | Port size | Operating pressure range （MPa） | Effective area （mm2） | Nozzle port size |
|---|---|---|---|---|
| VMG | Rc，NPT，G 1/4，3/8 | 0 to 1.0 | 30 | Rc1/4 |
the SMC "Blow gun" + "S coupler" + "Coil tube"
*10% reduction with the "Blow gun (VMG)" only

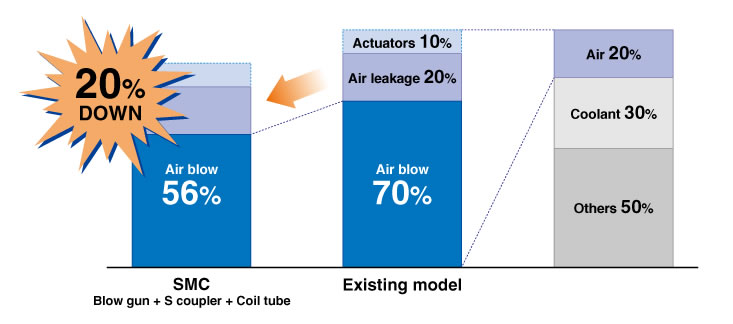

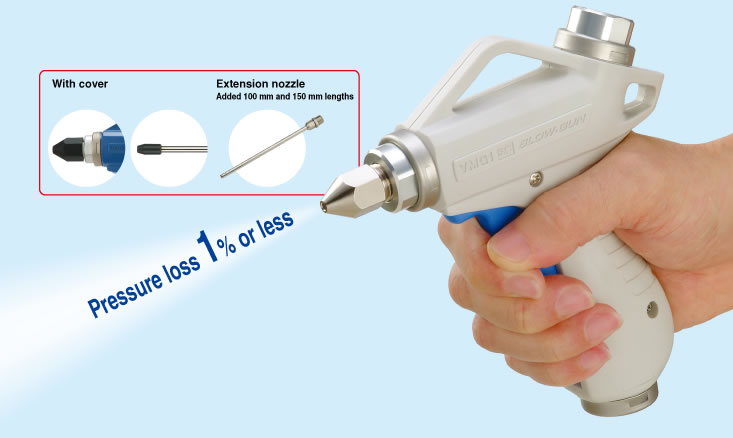

The electricity used by compressors for air accounts for approximately 20% of that consumed by the entire factory. Also, 70% of the air consumed in the process is used for air blowing. SMC blow guns have minimal pressure loss compared with conventional models, so they can achieve equivalent performance at lower pressures and with less volume of air consumption. As a result, it is possible to achieve a 20% reduction in power consumption.
Not affected by supply pressure, assured operability
When using this product even at a high pressure, the same gripping force is required as for a lower pressure due to the unique balance-poppet construction.
Components are separable.

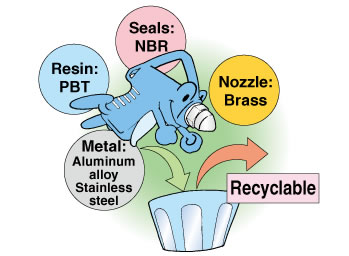

Environmentally friendly
Resin parts are inscribed with the name of the material.
Additionally, all parts can be separated by material.
Use of shock-resistant resin
Shock-resistant resin is used in the main body. No cracks, breaks or other damage occurred in a drop test from a 2-meter height or in a human stomp test.
For pressure loss improvement S coupler：Series KK
Improved fitting’s restrictor and leakage

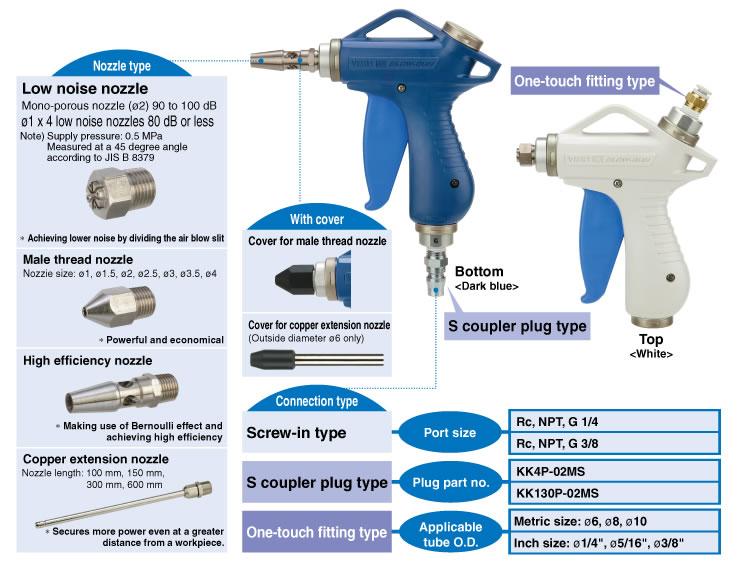

VMG, Blow Guns, Standard Type
- Product Code: VMG Blow Guns Silencer
- Availability: In Stock
-
-
Tags: Blow Guns VMG
